Freud Router Bit Sets

Freud, an industry leader for over 50 years, the Freud name equals quality, precision and craftsmanship. Freud router bits feature Freud made TiCo Hi-Density Carbide for maximum cutting life. Freud bits are individually balanced, giving a cut above the rest. So when you’re looking for a serious router bit, look for the Freud red.

Freud Glass Panel Cabinet Door Bit Set 99-286

Freud Glass panel Cabinet Door Bit Set








Creates top quality strong, tight-fitting glass panel door joints with ease and accuracy

  • Extra strong rail and stile joints with a unique lock in the stile and rail joint, plus significantly more gluing surface. No other set on the market provides this feature.
  • Easy time saving set-up improves accuracy and increases profitability for the professional.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
No. Description
Price
Quantity

3023

Glass Panel Cabinet Door Bit Set 99-286

$186.99



Freud Adjustable Tongue & Groove Router Bit Set

Freud Adjustable Tounge and Groove Bit Set



  • Producing perfectly fitted tongue and groove joints for projects such as Shaker style cabinet doors
  • Exclusive Freud design features a tongue cutter with opposing shear angles to ensure a flawless finish.
  • Adjustable at .002 inch increments for stock thickness of 1/2" to 1-1/4" and groove widths of 7/32" to 3/8".
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers.

Toungue and Groove Detail



No. Description
Price
Quantity

2814

Freud Adjustable Tongue & Groove Bit Set

$79.99



Freud 5 Piece Locking Joint Bit Set
with 20 Min Introduction to Locking Joints DVD

Build corners, 4 sided columns, drawers, glued-up panels, 8 sided boxes and columns and a lot more! This 5 Piece Locking Joint Set can do it all.


Freud 5 Piece Lock Joint Set

Bit

Overall Dia. (D)

Small Dia.(n)
Carbide Height (h)
Angle
(d)
Minor Height (m)
Shank Dia.(A)
Overall Lenght (H)
45° Lock Miter
2-11/64"
-
7/8"
45°
-
1/2"
2-3/8"
Drawer Lock
2"
1-3/4"
33/64"
30°
5/32"
1/2"
2"
Rev. Glue Joint
1-1/2"
1-3/16"
1-1/4"
30°
-
1/2"
2-3/4"
22-1/2° Lock Joint Set

1-1-15/32"
-
7/8"
22-1/2°
-
1/2"
2-3/8"

Create perfect locking corner joints with the lock miter bit and make a strong joint between the sides and front of drawers with the drawer lock bit. The lock miter set also includes the reversible glue joint bit that creates stronger joints by increasing the surface area for glue. Then add the 2 Piece 22-1/2° Lock Joint set for 8 sided boxes and columns and you have it all.

No. Description
Price
Quantity

3034

Freud 5 Piece Locking Joint Bit Se twith 20 Min Introduction to Locking Joint DVD

$287.99


Freud 3 Piece Locking Joint Set

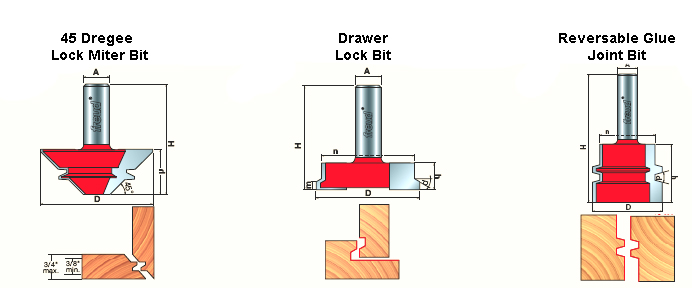

Freud 3 Piece Lock Joint Set
Bit

Overall Dia. (D)

Small Dia.(n)
Carbide Height (h)
Angle
(d)
Minor Height (m)
Large Radius (R)
Shank Dia.(A)
Overall Lenght (H)
45° Lock Miter
2-11/64"
-
7/8"
45°
-
-
1/2"
2-3/8"
Drawer Lock
2"
1-3/4"
33/64"
30°
5/32"
-
1/2"
2"
Rev. Glue Joint
1-1/2"
1-3/16"
1-1/4"
30°
-
-
1/2"
2-3/4"

Create perfect locking corner joints with the lock miter bit and make a strong joint between the sides and front of drawers with the drawer lock bit. The lock miter set also includes the reversible glue joint bit that creates stronger joints by increasing the surface area for glue.
The combination of these three bits make for a near perfect router bit joinery set!

  • Reversible Glue Joint Bit. Plane boards to a uniform thickness; align bit to the center of the board, then reverse each board for a perfect glue joint.
  • Drawer Lock Bit. Drawer fronts are formed horizontally, flat on the router table surface. Drawer sides are formed vertically against the fence of the router table.
  • Lock Miter Bit. Run one board vertically and piece to be joined horizontally. This bit makes 90° corners or flat glue joints.
No. Description
Price
Quantity

2878

Freud 3 Piece Locking Joint Set with 20 Min Introduction to Locking Joint DVD

$186.99



Freud 2 Piece 22-1/2 ° Locking Joint Set

2 Piece Locking Joint Router Bit Set



This 2 Piece 22 1/2 degree lock miter set also includes the reversible glue joint bit that creates stronger joints by increasing the surface area for glue. This combination is great for gluing up panels to build 8 sided boxes, chest or columns with seamless lock miter corners.



No. Description
Price
Quantity

3019

Freud 2 Piece 22-1/2° Locking Joint Set

$113.47



Freud 3 Piece Quadra-Cut Round Over Set

Freud 3 Piece Quadra-Cut Roundover Bit Set








Rounding over bits soften the edges of fine furniture, while beading bits produce a simple, decorative edge on furniture and moldings

Set Contents
Overall
Dia.
Bearing
Dia.
Carbide
Height
Shank
Dia.
Overall
Length
1/4" Rounding Over Bit (34-120)
1"
1/2"
1/2"
1/2"
2-1/2"
3/8" Rounding Over Bit (34-124)
1-1/4"
1/2"
5/8"
1/2"
2-5/8"
1/2" Rounding Over Bit (34-126)
1-1/2"
1/2"
3/4"
1/2"
2-3/4"
No. Description
Price
Quantity

3078

Freud 3 Piece Quadra-Cut Round Over Set

$119.99



Freud 5 Piece Quadra-Cut Roundover Bit Set



Freud 5 Piece Edge Bit Set



Application: Decorative edging for cabinets, molding and furniture



Add distinctive design to cabinets, furniture, plaques, and millwork with these roundover bits. Cuts all composition materials, plywoods, hardwoods, and softwoods. Use on hand-held and table-mounted routers.

Set Contents
Overall
Dia.
Bearing
Dia.
Carbide
Height
Shank
Dia.
Overall
Length
1/4" Rounding Over Bit (34-120)
1"
1/2"
1/2"
1/2"
2-1/2"
3/8" Rounding Over Bit (34-124)
1-1/4"
1/2"
5/8"
1/2"
2-5/8"
1/2" Rounding Over Bit (34-126)
1-1/2"
1/2"
3/4"
1/2"
2-3/4"
5/8"Rounding Over Bit (34-127)
1-7/8"
5/8"
7/8"
1/2"
2-7/8"
3/4"Rounding Over Bit (34-128)
2"
1/2"
1"
1/2"
2-7/8"
No. Description
Price
Quantity
3079
Freud 5 Piece Quadra-Cut Roundover Bit Set
$199.99



Freud 8 Piece Incra Jig / Jointech Bit Set

Freud 8 Piece Incra Jig Bit Set

Create dovetail and box joints by combining these bits with your table-mounted router equipped with an Incra Jig® / Jointech System

  • Follow the directions in the Incra Jig® / Jointech System manual and use the correct bit number for the joint you want to create.
  • Both sets produce identical profiles.
  • Includes attractive wooden storage box.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers equipped with Incra Jig®.
  • Can also be used with other joint making jigs or fence systems and CNC automatice routers.
Item #
Set Contents Overall
Dia.
Bearing
Dia.
Carbide
Height
Shank
Dia.
Overall
Length
96-102
Double Flute Straight Bit (12-100)
1/4"
3/4"
-
1/2"
2-3/8"
Double Flute Straight Bit (12-108)
3/8"
1"
-
1/2"
2-5/8"
Dovetail Bit (22-107)
1/4"
5/16"
7-1/2°
1/2"
2-5/8"
Dovetail Bit (22-108)
5/16"
3/8"
1/2"
2-1/8"
Dovetail Bit (22-110)
3/8"
3/8"
1/2"
2-1/4"
Dovetail Bit (22-112)
1/2"
1/2"
14°
1/2"
2-1/4"
Dovetail Bit (22-113)
5/8"
7/8"
1/2"
2-5/8"
Dovetail Bit (22-114)
3/4"
7/8"
1/2"
2-5/8"
No. Description
Price
Quantity

2336

Freud 8 Piece Incra Jig / Jointech Bit Set 96-102

$128.99



Freud 9 Piece Basic Router Bit Set 91-108

Freud 9 Piece Basic Router Set 91-108



Ideal starter set for the beginning woodworker
  • Includes a variety of bits that allow you to experience several router functions.
  • Set comes in Freud's™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on hand-held and table-mounted portable routers.
Item #
Set Contents Overall
Dia.
Bearing
Dia.
Carbide
Height
Shank
Dia.
Overall
Length
91-108
Double Flute Straight Bit (12-116) 1/2" – 1" 1/2" 2-5/8"
Double Flute Straight Bit (12-108) 3/8" – 1" 1/2" 2-5/8"
Mortising Bit (16-110) 1/2" – 1/2" 1/2" 2-3/8"
Dovetail Bit (22-112) 1/2" – 1/2" 1/2" 2-1/4"
Rabbeting Bit (32-102) 1-1/4" 1/2" 1/2" 1/2" 2-1/4"
Rounding Over Bit (34-120) 1" 1/2" 1/2" 1/2" 2-1⁄2"
Roman Ogee Bit (38-106) 1-3/8" 3/8" 1/2" 1/2" 2-3⁄8"
Bearing Flush Trim Bit (42-109) 1/2" 1/2" 1/2" 1/2" 2-7/8"
V Grooving Bit (20-108) 3/4" – 1/2" 1/2" 2-1/4"
*Solid Carbide
No. Description
Price
Quantity

2333

Freud 9 Piece Basic Router Bit Set 91-108

$167.99



Freud 13 Piece Super Router Bit Set 91-100

Freud 13 Piece Super Router Bit Set



Offers a mix of woodworkers' favorite bits, including V grooving, flush trimming, chamfering and dovetailing
  • All bits have 1/2" shanks.
  • Set comes in Freud's™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on hand-held and table-mounted portable routers.
Item #
Set Contents Overall
Dia.
Bearing
Dia.
Carbide
Height
Shank
Dia.
Overall
Length
91-100
Double Flute Straight Bit (12-100) 1/4"
-
3/4" 1/2" 2-3/8"
Double Flute Straight Bit (12-116) 1/2"
-
1" 1/2" 2-5/8"
Double Flute Straight Bit (12-152) 3/4"
-
1" 1/2" 2-1/2"
Mortising Bit (16-110) 1/2"
-
1/2" 1/2" 2-3/8"
Round Nose Bit (18-114) 1/4"
-
3/8" 1/2" 2-1/4"
V Grooving Bit (20-108) 3/4"
-
1/2" 1/2" 2-1/4"
Dovetail Bit (22-112) 1/2"
-
1/2" 1/2" 2-1/4"
Cove Bit (30-114) 1-1/2" 1/2" 5/8" 1/2" 2-1/2"
Rabbeting Bit (32-102) 1-1/4" 1/2" 1/2" 1/2" 2-1/4"
Rounding Over Bit (34-124) 1-1/4" 1/2" 5/8" 1/2" 2-5/8"
Roman Ogee Bit (38-106) 1-3/8" 3/8" 23/32" 1/2" 2-9/16"
Chamfer Bit (40-114) 1-3/4" 1/2" 5/8" 1/2" 2-9/16"
Bearing Flush Trim Bit (42-110) 1/2" 1/2" 1" 1/2" 3-1/4"
No. Description
Price
Quantity

2334

Freud 13 Piece Super Router Bit Set 91-100

$209.99




Freud 4 Piece Undersized Plywood Bit Set

Freud 4 Piece Undersized Plywood Bit Set



Creates perfectly fitted grooves and dadoes

  • Designed to cut today's undersized plywood; ideal for 1/4" to 3/4" plywood.
  • Set comes in Freud's unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on hand-held and table-mounted portable routers.



Item #
Set Contents Overall
Dia.
Carbide
Height
Shank
Dia.
Overall
Length
89-650
Down Shear Mortising Bit (16-094)
7/32"
1/2"
1/2"
2-1/4"
Down Shear Mortising Bit (16-107)
11/32"
1/2"
1/2"
2-1/4"
Down Shear Mortising Bit (16-109)
15/32"
1/2"
1/2"
2-1/4"
Mortising Bit (16-116)
23/32"
3/8"
1/2"
2-1/8"
No. Description
Price
Quantity

2329

Freud 4 Piece Undersized Plywood Bit Set

$79.99



Freud Spiral Router Bit Sets

Freud Spiral Router Bit Set



Quickly create grooves, mortises, and dadoes with chip removal

  • Use the Up Spiral Bit Set for mortises, dado cuts, and deep blind holes where chips must be pulled out of the cut, and where speed of cut is the primary consideration.
  • Set comes in Freud's™ unique shadow box case that can hang on the wall or mount on the bench to keep bits handy and safe.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on CNC and other automatic routers as well as hand-held and tablemounted portable routers.
Item #
Set Contents Overall
Dia.
Carbide
Height
Shank
Dia.
Overall
Length
90-150
Up Spiral Bit* (75-101)
3/16"
3/4"
1/4"
2"
Up Spiral Bit* (75-102)
1/4"
1"
1/4"
2-1/2"
Up Spiral Bit* (75-104)
5/16"
1"
1/2"
3"
Up Spiral Bit* (75-106)
3/8"
1-1/4"
1/2"
3"
Up Spiral Bit* (75-108)
1/2"
1-1/4"
1/2"
3"
*Solid Carbide
90-160
Down Spiral Bit* (76-101)
3/16"
3/4"
1/4"
2"
Down Spiral Bit* (76-102)
1/4"
1"
1/4"
2-1/2"
Down Spiral Bit* (76-104)
5/16"
1"
1/2"
2-1/2"
Down Spiral Bit* (76-106)
3/8"
1-1/4"
1/2"
3"
Down Spiral Bit* (76-108)
1/2"
1-1/4"
1/2"
3"
*Solid Carbide
No. Description
Price
Quantity

2330

Freud Down Spiral Router Bit Sets 90-160

$159.99

2331

Freud Up Spiral Router Bit Sets 90-150

$159.99
