Freud Raised Panel Bits with Backcutters

Freud rasied panel bits produce panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance.


Shaker Style Freud Quadra-Cut™ Raised Panel Bit #99-566 with Backcutter

Shaker Style Freud Quadra-Cut™ Raised Panel Bit #99-566 with Backcutter

This style of Freud Quadra-Cut™ Raised Panel Bit #99-566 with Backcutters is called by more than one name, bevel, shaker or even flat panel. No matter what you call it, it goes well with any type rail and stile profile.

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a backcutter with the smooth cuts of Freud's 2+2 Raised Panel Bits.
  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Overall Dia.(D) Carbide Height(h) Minor Height(m) Large Radiu(R1) Small Radius(R2) Shank Dia.(A) Overall Length(H)
3-1/2"
1"
5/32"
3/16"
1/2"
3"
No. Description Price Quantity
2864
Shaker Style Freud Quadra-Cut™ Raised Panel Bit #99-566 with Backcutters
$119.99

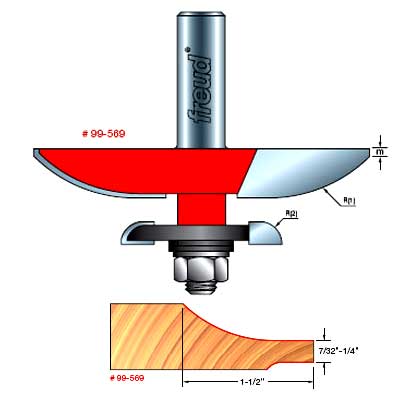

Cove Style Freud Quadra-Cut™ Raised Panel Bit #99-569 with Backcutter

Freud Quadra-Cut™ Raised Panel Bit #99-569 with Backcutters

This style of Freud Quadra-Cut™ Raised Panel Bit #99-569 with Backcutters is called a cove panel and goes well with the roundover style rail and stile cutter set.

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a backcutter with the smooth cuts of Freud's 2+2 Raised Panel Bits.
  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Overall Dia.(D) Carbide Height(h) Minor Height(m) Large Radiu(R1) Small Radius(R2) Shank Dia.(A) Overall Length(H)
3-1/2"
1"
5/32"
1-1/2"
3/16"
1/2"
3"
No. Description
Price
Quantity
2865
Cove Style Freud Quadra-Cut™ Raised Panel Bit #99-569 with Backcutter
$119.99

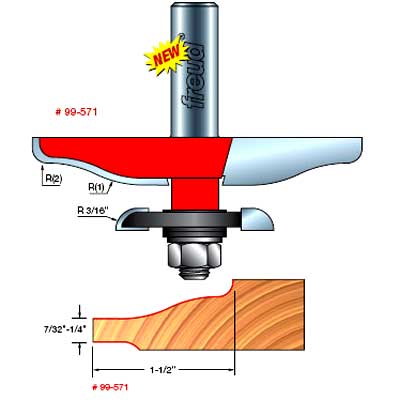

Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-571with Backcutter

Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-571with Backcutter

This style of Freud Quadra-Cut™ Raised Panel Bit #99-571 with Backcutters is called a ogee panel bit and goes well with the roundover and ogee style rail and stile cutter sets.

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a backcutter with the smooth cuts of Freud's 2+2 Raised Panel Bits.
  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Overall Dia.(D) Carbide Height(h) Minor Height(m) Large Radiu(R1) Small Radius(R2) Shank Dia.(A) Overall Length(H)
3-1/2"
1"
-
1-3/16"
5/32"
1/2"
3"
No. Description
Price
Quantity
2866
Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-571 with Backcutter
$119.99

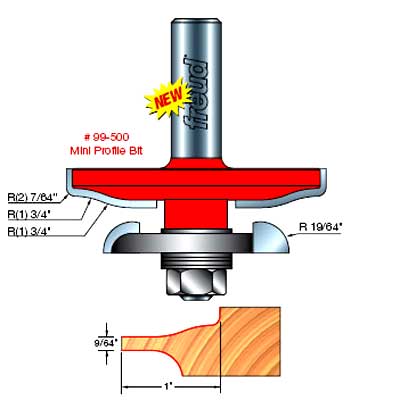

Mini Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-500 with Backcutter

Mini Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-500 with Backcutter

This style of Freud Quadra-Cut™ Raised Panel Bit #99-500 with Backcutter is called a mini ogee panel bit and only works with the mini Rail and Stile Set 99-266 or custom milled parts.

Application:

  • Producing panels from 3/4" stock that are flush with the doorframe for a professional, architecturally correct appearance
  • Exclusive Quadra-Cut™ design combines a backcutter with the smooth cuts of Freud's 2+2 Raised Panel Bits.
  • Shims are included to allow adjustment of tongue thickness from 7/32" to 1/4" for maximum versatility and compatibility.
  • Patented design allows these bits to produce a full 1-1/2" wide reveal for traditional raised panel doors.
  • Included 54-562 radius backcutter gives double-sided appearance and can be replaced with optional 54-560 square backcutter for a more contemporary look.
  • Cuts all composition materials, plywoods, hardwoods, and softwoods.
  • Use on table-mounted portable routers.
Overall Dia.(D) Carbide Height(h) Minor Height(m) Large Radiu(R1) Small Radius(R2) Shank Dia.(A) Overall Length(H)
2-19/32"
7/8"
-
3/4"
7/64"
1/2"
2-51/64"
No. Description
Price
Quantity
2881
Mini Ogee Style Freud Quadra-Cut™ Raised Panel Bit #99-500 with Backcutter
$120.99
